PACKAGE SUPPLY PLATFORM

The package supply counter is the starting point of the express delivery automated sorting system. While supplying packages, volume detection, weight measurement and waybill analysis are carried out on the packages to ensure that they are read by the main control system before officially entering the line. This enables quick matching of the corresponding loading carts and unloading grids to complete the sorting steps along the optimal route, improving the reading rate and analysis accuracy, and promoting the efficient operation of the automated sorting system. Generally, the bag supply table has three to seven sections of belts, which are divided into the introduction section, the acceleration section and the bag supply section. The more acceleration segments there are, the higher the packet supply efficiency will be. The common types of bag supply stations are: 45-degree Angle (clockwise/counterclockwise direction) and 30-degree Angle (clockwise/counterclockwise direction).

System Components

1. Sorting Control Computer: Industrial-grade IPC with dual Ethernet ports (Profinet+EtherCAT), processing capacity 5,000 scans/min (ISO/IEC 15418 compliant)

2. High-Speed Barcode Imaging Module: 12MP CMOS camera with 30fps capture rate, GS1-128/Data Matrix decoding (ISO 16022 Level A)

3. Dynamic Weighing System: 0.1-50kg capacity (±5g accuracy) with OIML R76 certification

4. Photoelectric Measurement Array: Class 1 laser light curtain (EN 60825-1), ±0.5mm dimensional accuracy

5. Servo-Driven Multi-Segment Roller Belt: 0.1-3m/s variable speed control (IEC 61800-7 compliant), 500-1500mm modular sections

6. Industrial Control Cabinet: - PLC: Siemens S7-1500 series - Servo Drives: Yaskawa Σ-7 series - Protection: IP54 (IEC 60529) - Safety: SIL2 (IEC 62061)

Product Series

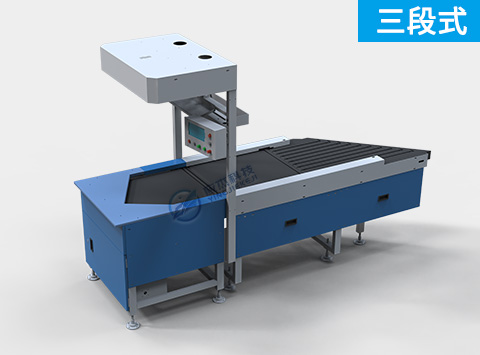

3-Stage Induction System
Functional Stages Stage 1: 800mm Zone
- Static/Dynamic Weighing
- Barcode Scanning (ISO/IEC 15416)
Stage 2: 800mm Zone
- Speed Regulation (0.1-3m/s)
Stage 3: 1000mm Zone
- Acceleration (0.5G)
- Carrier Positioning
- Loading Transfer
Key Features ① Integrated Weighing & Scanning System
② Min. Weight: 0.06-0.1kg (Conservative: 0.1kg)
③ 99.99% Read Rate, ±0.02kg Accuracy (OIML R76)
Throughput 1,500-2,200 items/hr
*Test conditions: Standard parcels, optimized chute layout, 90% carrier availability

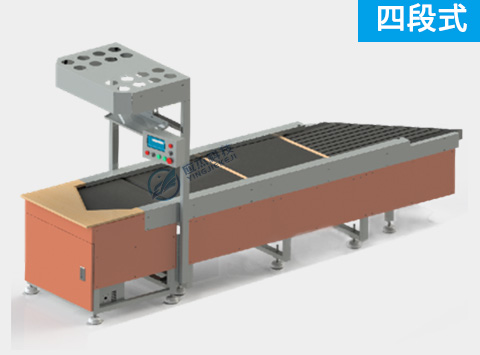

4-Stage Induction System
Functional Stages Stage 1: 800mm Zone
- Static/Dynamic Weighing
- Barcode Scanning (GS1-128)
Stage 2: 800mm Zone
- Secondary Weighing Verification
Stage 3: 800mm Zone
- Speed Matching
- Gap Control (50-500mm adjustable)
Stage 4: 1100mm Zone
- High-speed Loading (≤0.8s/item)
- Carrier Synchronization
Enhanced Features ④ Buffer Storage Zone (15sec retention)
⑤ Improved Loading Success Rate (99.95%)
⑥ Dual-weighing Validation System
Throughput 1,500-2,500 items/hr
*With buffer capacity: 20% throughput increase vs 3-stage system
