STRAIGHT CROSS BELT SORTING EQUIPMENT

    Yingjie Technology linear cross belt sorting system is designed for small and medium outlets research and development of sorting equipment. It has wide application range, small occupation area, high efficiency and low consumption, high cost performance. When supplying parts, it only needs to put the express face up into the specified area, and cooperate with the parts supply system to realize efficient and accurate processing of the sorting host.

产品展示图
产品展示图
产品展示图
产品展示图
产品展示图

System Features

1. Compact footprint with low investment and high cost-effectiveness;

2. Accurate code reading with integrated scanning and weighing functions;

3. Wide parcel compatibility, high efficiency, and low mis-sorting rate;

4. Simple loading operation reduces labor requirements;

5. Shared use for inbound/outbound operations and multi-carrier compatibility;

6. Seamless integration with various client information management systems.

产品展示图

Technical Parameters

Sorting efficiency 8,000 – 18,000 pieces/hour
Operating speed 1m/s – 1.5m/s
Standard pitch 250mm/400mm/500mm
Mis-sorting rate < 0.03%
Barcode recognition rate 99.99%
Parcel dimensions Max. 420mm*650mm*400mm
Carrier load capacity 0.05kg – 15kg
Floor space 100m² – 300m²
Workforce requirement 6 – 12 operators
Equipment investment ¥500,000 – ¥1,000,000 (site-specific solutions may vary)

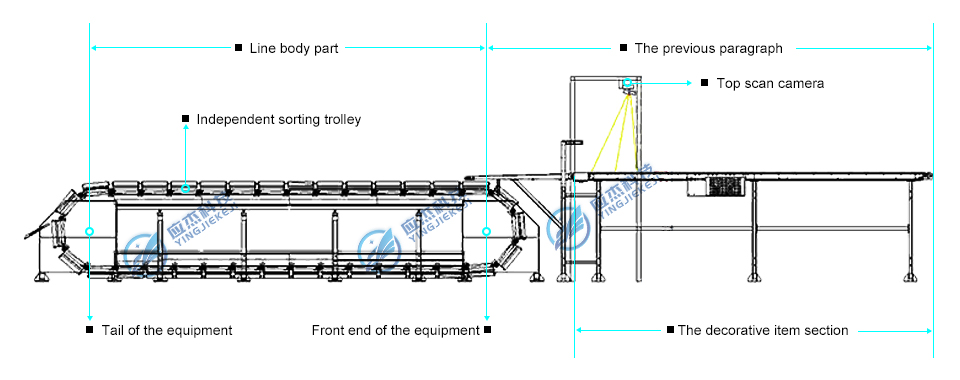

System Structure

产品展示图
